    TLG

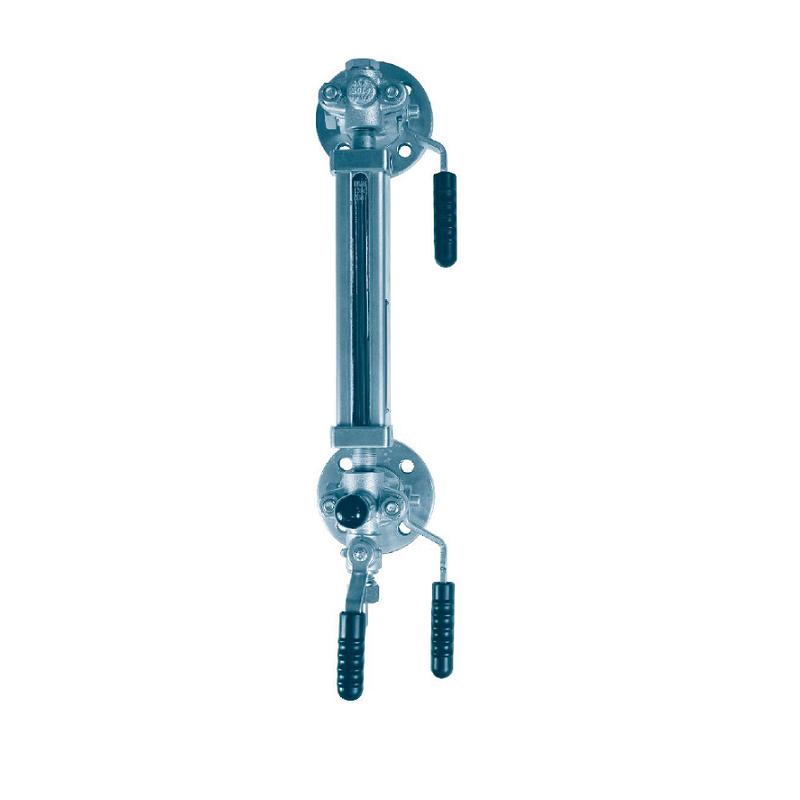

    This type of indicators display the level of the fluid through a transparent surface, being part of a column that is connected to the vessel by on-off cock gauges. They are composed of one or more opposed pairs from smooth borosilicate glass (crystal) that are tightened inside a steel box.

    Categories: , Tags: ,

    Description

    TRANSPARENT LEVEL INDICATOR

    The level reading is based on a different transparency of the fluid and the gas or vapor. In heavy-duty applications, the glass is protected by means of a mica shield, which however reduces the reading transparency. To remedy this phenomenon, special illuminators are used which exploit the total refraction / reflection effect in the fluid / gas or vapor separation surface. Reflection indicators are successfully used up to 250 bars and with temperatures up to 538° C.

    Additional information

    Application Cases

    Principle

    Measuring Range

    Process Connection

    Process Temperature

    Accuracy Class

    Solution
