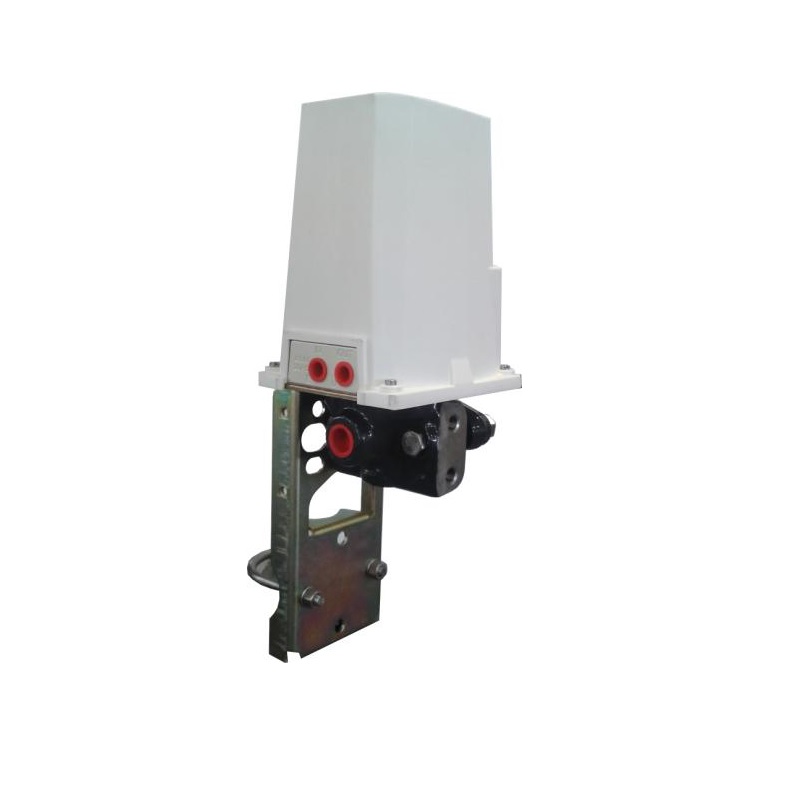

    SG77

    The SG77 works on the force balance principle and consists of two main units: The measuring unit which detects the differential pressure variation and consists of two forged bodies and a bellows.

    Description

    PNEUMATIC RELATIVE PRESSURE TRANSMITTER

    The transmission unit converts the differential force applied to the measuring element into a proportional output pneumatic signal. The output pressure, generated by a flapper nozzle relay, feeds the feedback bellows with a rising pressure until the balance between bellows force and measuring element is reached. The whole transmission unit is contained within a water-resistant housing.

    Additional information

    Application Cases

    Principle

    Measuring Range

    Process Connection

    Process Temperature

    Accuracy Class

    Solution
