The circular chart recorders Series RNG with models 150 and 450 are suitable to record physical variables which temperature and pressure of liquids, gaseous or vaporous media in the industrial process plants.

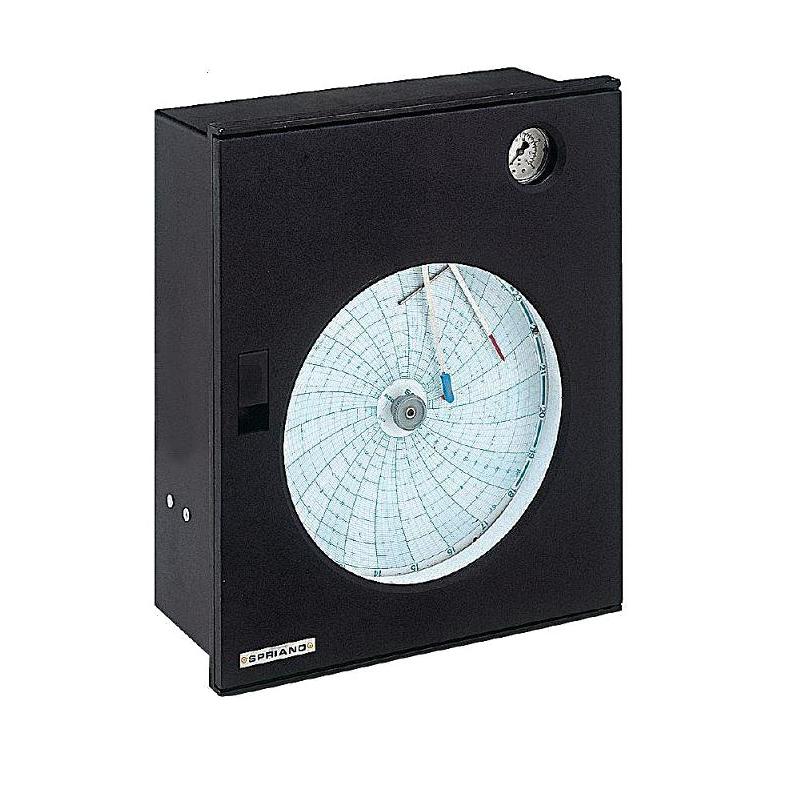

CIRCULAR RECORDER
These series are mechanic continual trace recorders The system of writing is made by cartridge with fiber pen. Series allow the simultaneous registration up to three variables of daily or weekly processes (24 hours std).
| Application Cases | |
|---|---|
| Principle | |
| Measuring Range | Input signal (Pressure): -1…0 bar a 0…1000 bar. Input signal (Temperature): 0…25 °C a 0…500 °C. |
| Process Connection | Air supply and output: 1/4" NPT with fitting for 4/6 mm pipe size. |
| Process Temperature | |
| Accuracy Class | |
| Solution |
