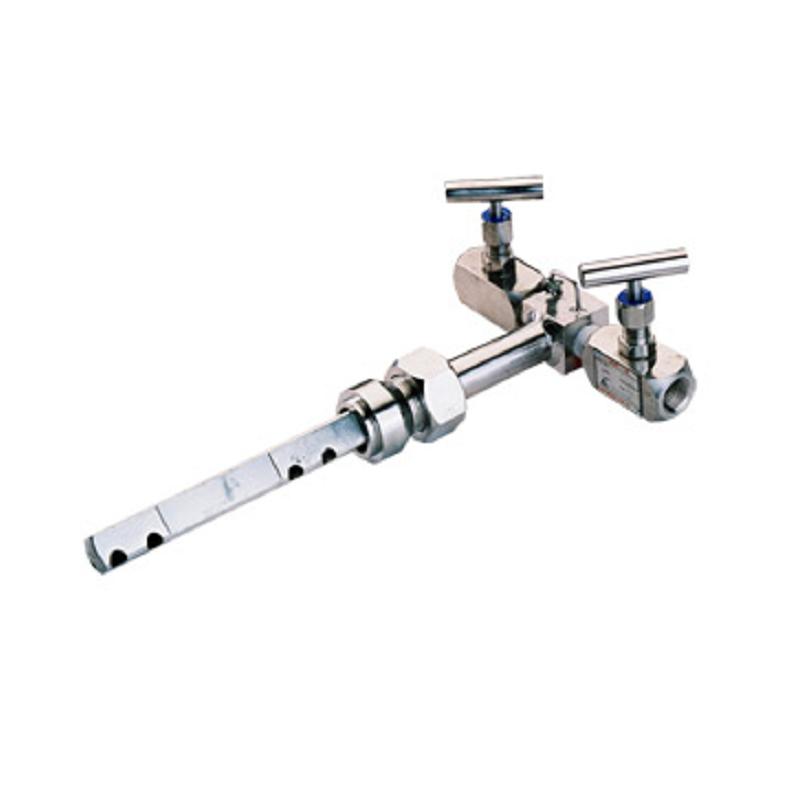

    PIT

    The primary device of measurement more advanced for liquid, gas and steam. The Averaging Pitot is a primary instrument of measure, designed to produce a differential pressure, proportional to the flow.

    Description

    AVERAGING PITOT TUBE

    Based on the theorem of Bernoulli, the four upstream holes take the velocity of the flow in four different points of the pipe (taking an ‘average’ value), the downstream hole measures the static pressure. The differential pressure that follows is proportional to the flow.

    Additional information

    Application Cases

    Principle

    Measuring Range

    Process Connection

    Process Temperature

    Accuracy Class

    Solution
